PLR60380
Tune

Artelds strives to create a more sophisticated and comfortable spatial experience through the perfect combination of lighting design and products.



product overview

Recommended accessories

Consider adding these items for a successful installation.

plaster ring Ø38

plaster ring Ø38

Our smallest plaster ring for recessed fixtures. Compatible with the trimless spot mini (that delivers up to 750 lumen) and pradocam 360 trimless mini. Scroll down to learn more.

 19,00 (excl. VAT)

 19,00

adjustable thick plaster ring Ø38

Made for thick plaster, adjustable from 12 to 33mm. Comes with a yellow plaster lid.

 29,00 (excl. VAT)

 0,00

clt csc ring Ø38

Our Ø38 clt csc ring is the ideal trimless solution for cross laminated timber and cold stretch ceilings.

 19,00 (excl. VAT)

 0,00

Tune

Product details

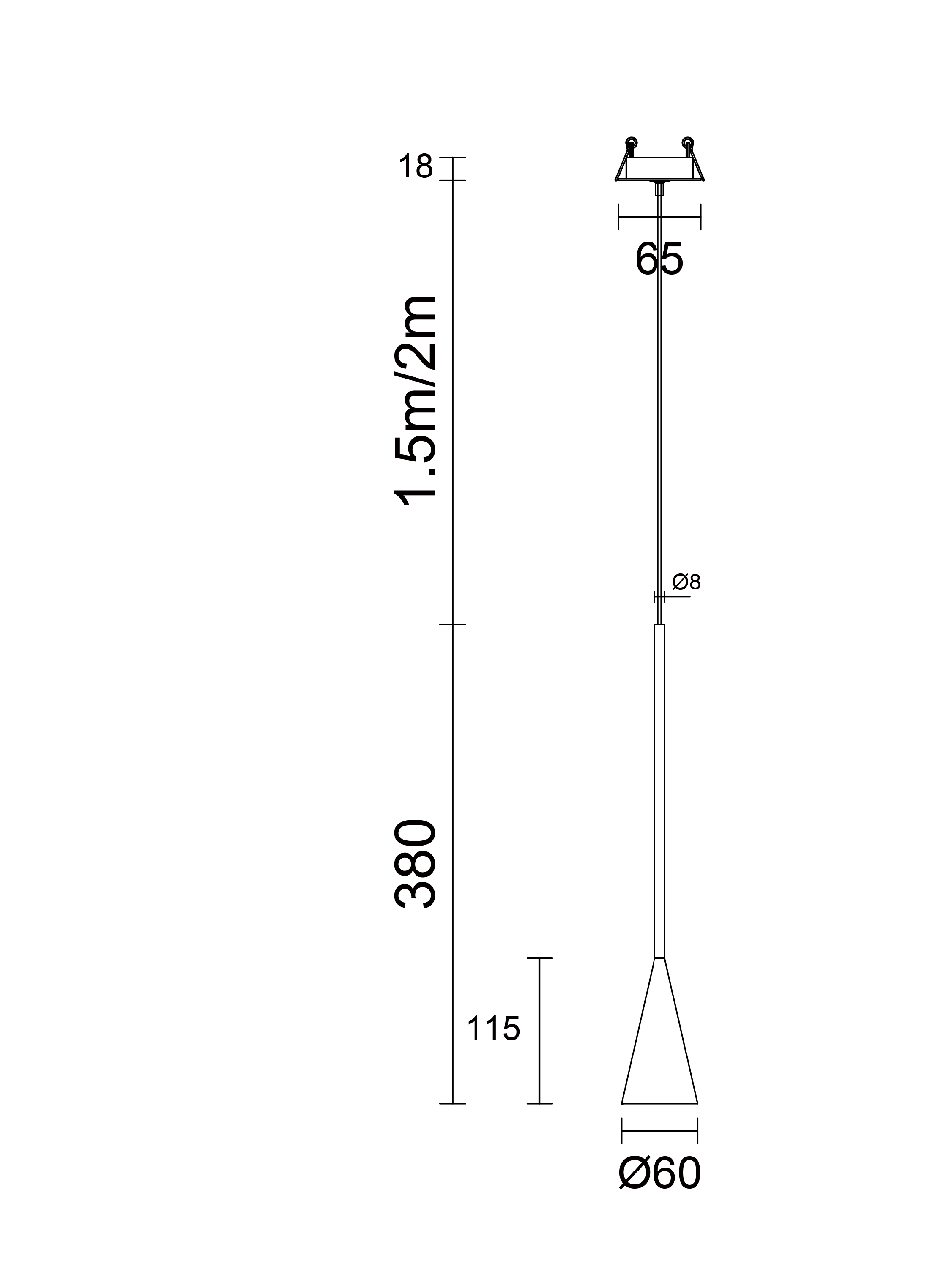

Tune PLR60380- 尺寸图.png

icoon boormaat
icoon gewicht

Specifications

Categorisation

:

Ceiling Pendant Lamp

Lamp

:

LED

Lamp Material

:

Aluminium   |   Lacquer   |   Powder Coating

Colour

:

Black   |   White   |   Silver

Cut-out Size

:

\

Beam angle

:

15°   |   24°   |   38°

Light temperature

:

2400K   |   2700K   |   3000K   |   3500K   |   4000K   |   5000K

Control method

:

No DIM   |   BLT DIM   |   TRIAC DIM   |   0~10V DIM   |   DALI DIM

Input Voltage

:

AC220~240V

Output power

:

7.5W

V-DC

:

220-240V

Luminous flux

:

719Im

CRI

:

90

IP

:

IP44

Weight

:

150g

Fixed form

:

Screw fastener
