DFR7598H
Ritz Luxrury Ø75

Artelds strives to create a more sophisticated and comfortable spatial experience through the perfect combination of lighting design and products.



product overview

Find a distributor
Product details

Recommended accessories

Consider adding these items for a successful installation.

plaster ring Ø38

plaster ring Ø38

Our smallest plaster ring for recessed fixtures. Compatible with the trimless spot mini (that delivers up to 750 lumen) and pradocam 360 trimless mini. Scroll down to learn more.

€ 19,00 (excl. VAT)

€ 19,00

adjustable thick plaster ring Ø38

Made for thick plaster, adjustable from 12 to 33mm. Comes with a yellow plaster lid.

€ 29,00 (excl. VAT)

€ 0,00

clt csc ring Ø38

Our Ø38 clt csc ring is the ideal trimless solution for cross laminated timber and cold stretch ceilings.

€ 19,00 (excl. VAT)

€ 0,00

Ritz Luxrury Ø75

Product details

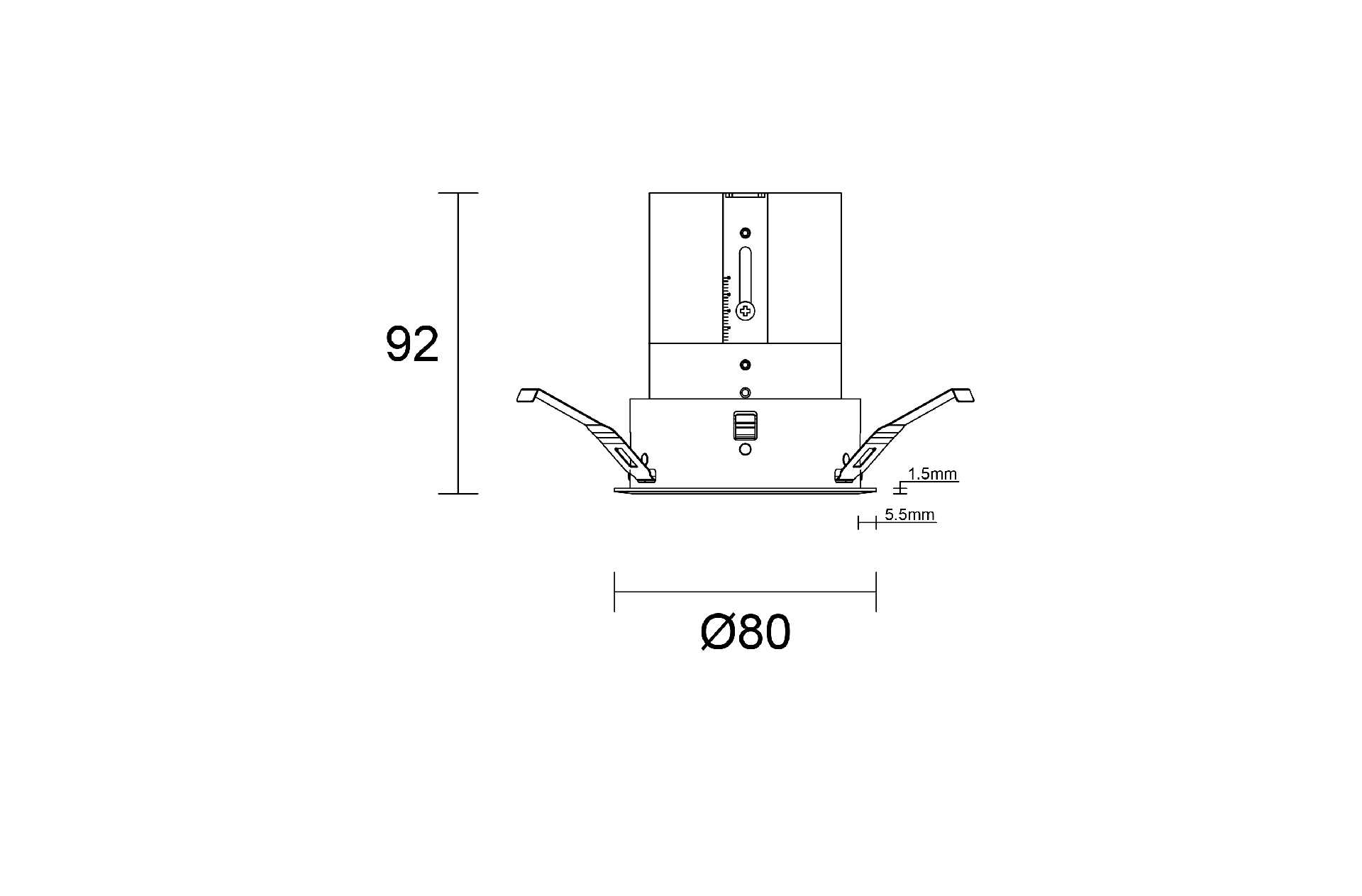

Ritz Luxrury Ø75 DFR7598H- 尺寸图.png

icoon boormaat
icoon gewicht

Specifications

Categorisation

:

Recessed Downlight

Lamp

:

LED

Lamp Material

:

Aluminium   |   Lacquer   |   Powder Coating

Colour

:

Black   |   White   |   Silver

Hole Size

:

Ø75mm*H98mm

Beam angle

:

8°   |   15°   |   24°   |   38°   |   45°

Light temperature

:

2700K   |   3000K   |   3500K   |   4000K   |   5000K

Control method

:

No DIM   |   BLT DIM   |   TRIAC DIM   |   0~10V DIM   |   DALI DIM

Input Voltage

：

AC220~240V

Output power

：

11W

V-DC

：

31V | 350mA

Luminous flux

：

846lm

CRI

：

90

IP

：

IP44

Weight

：

242g

Fixed form

：

Shrapnel fixing method



Accessories

B01

:

Honycomb Louver

B02

:

Spread lens

RC

:

Chrome

RBC

:

Black Chrome

RBM

：

Black Matt

RWM

：

White Matt

RGC

：

Golden Chrome

ND

：

Custom Type



Downloads

product sheet installation instruction dimension drawing ies
