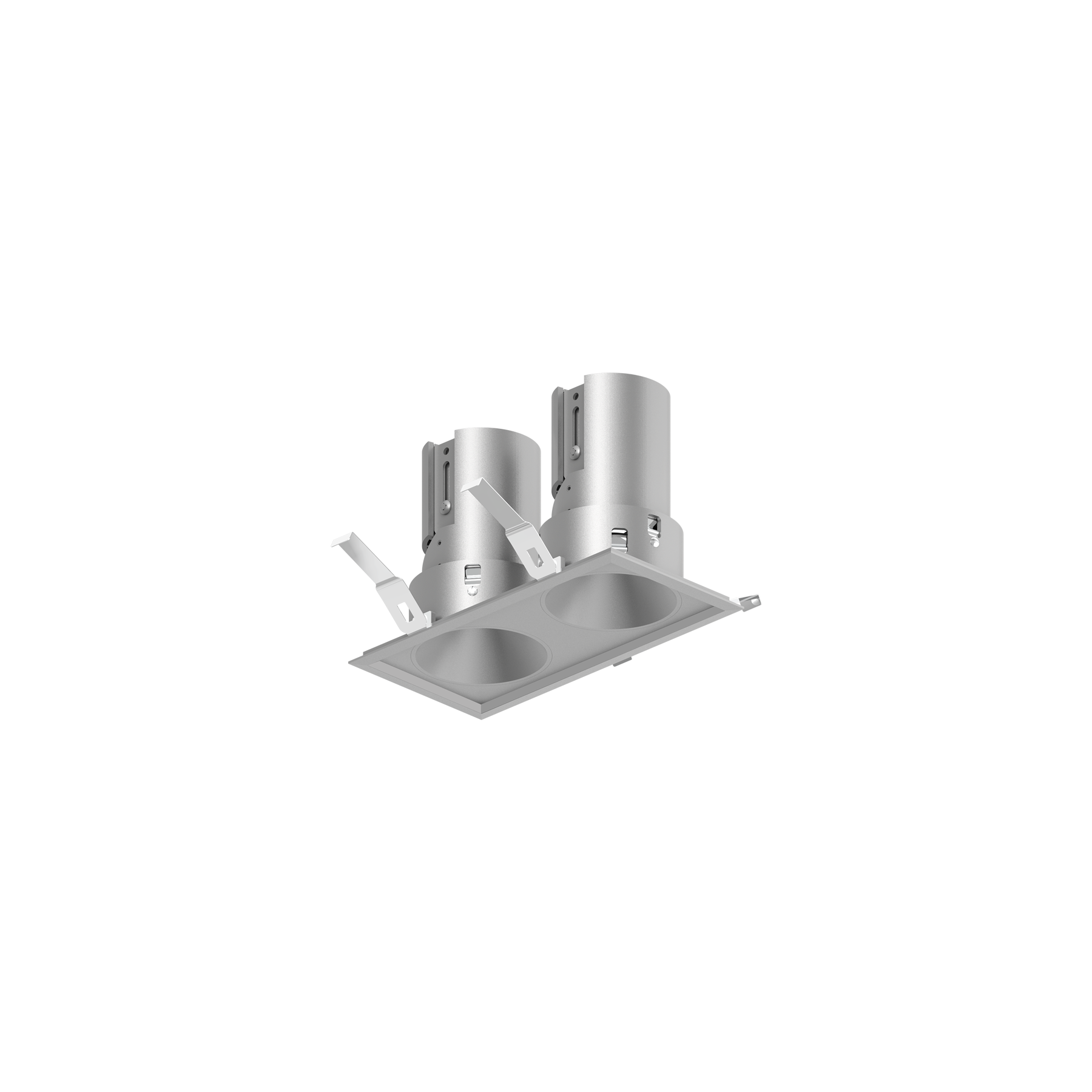

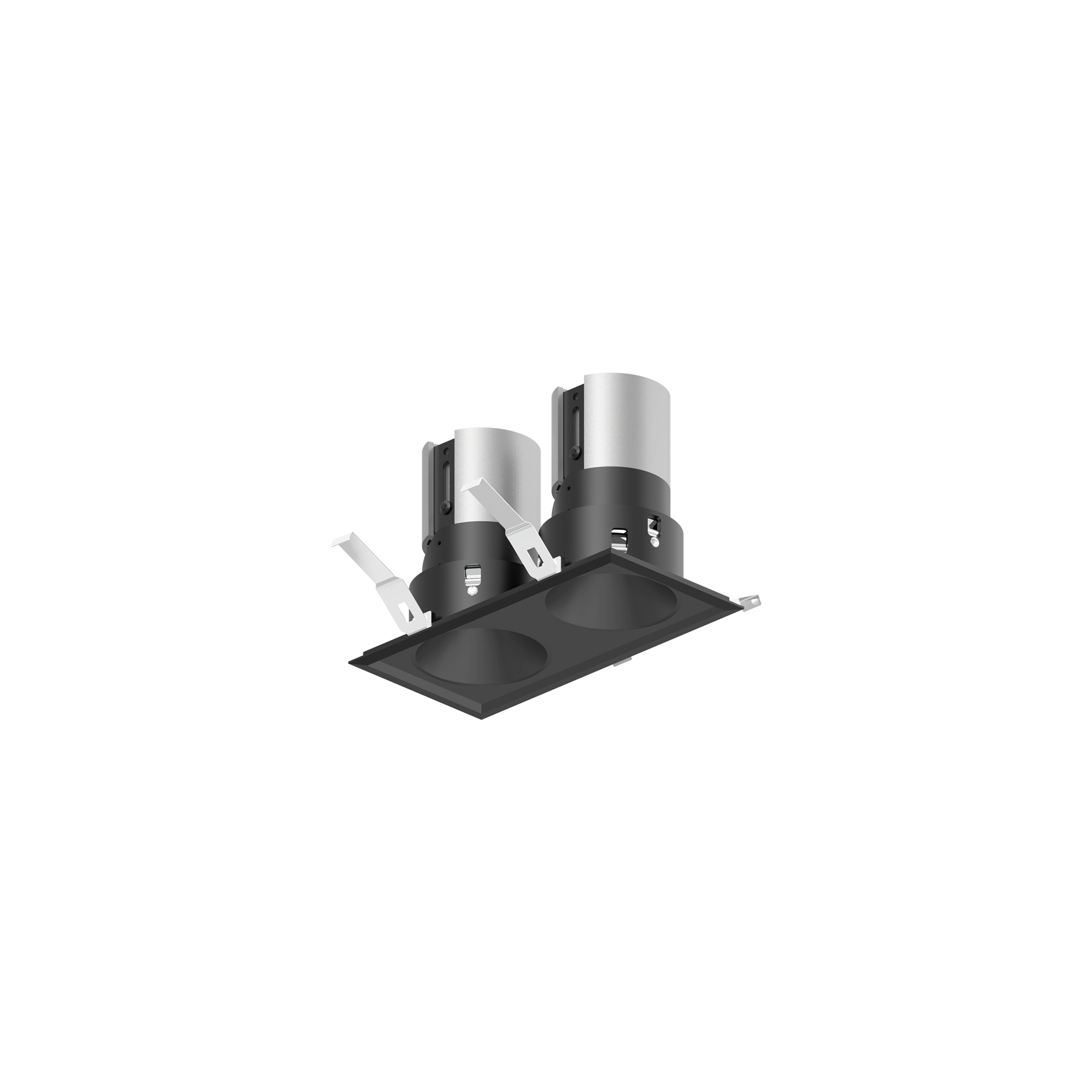

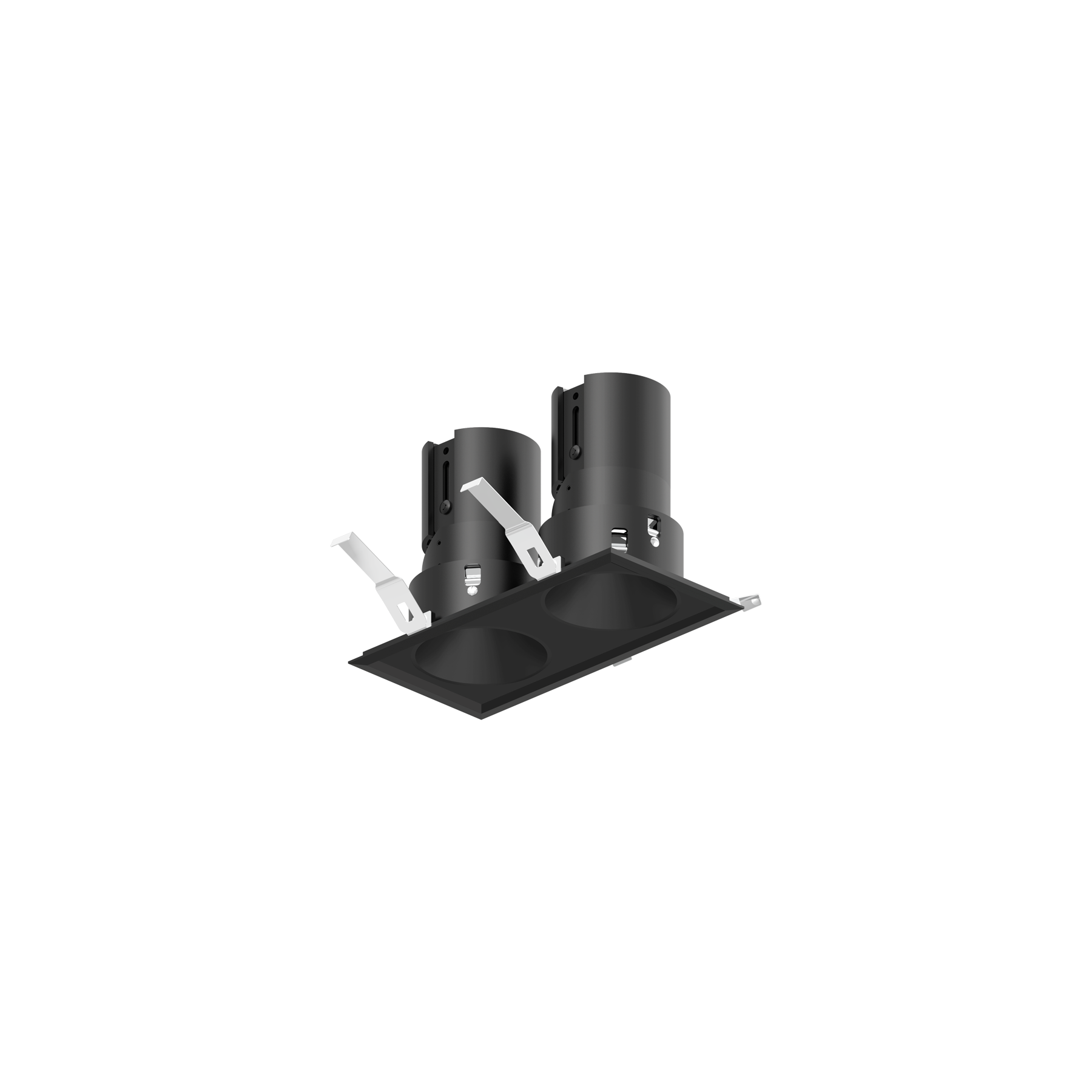

Multiple MAS68136-白色 Multiple MAS68136-黑色 Multiple MAS68136-全黑 Multiple MAS68136-银色 Multiple MAS68136-全黑03
LED Adjustable recessed downlight

Multiple MAS68136

Artelds is a leading international specialist in efficient architectural lighting with LED technology.



product overview





Category Recessed Adjustable Downlight

Delivery timeAbout 3-4 days (except holidays)

Protection Services



￥ 待定（tax inclusive）
复制图标 分享Facebook 分享Twitter

Please confirm the product model and product parameters before purchase





Related Products

Multiple MAS6868 Multiple MAS68136 Multiple MAS68206




Product Parameters
Categorisation： Recessed Adjustable Downlight
Lamp LED
Lamp Material Aluminium | Lacquer | Powder Coating
Colour Black | White | Silver
Hole Size L136mm*W68mm*H94mm
Beam angle 8° | 15° | 24° | 38°
Light temperature2700K | 3000K | 3500K | 4000K | 5000K
Control method No DIM | BLT DIM | TRIAC DIM | 0~10V DIM | DALI DIM
Input Voltage AC220~240V
Output power 7W *2
V-DC 36V | 200mA
Luminous flux 497lm
CRI 90
IP IP44
Weight \
Fixed form Shrapnel fixing method
Downloads
PRODUCT SHEET
INSTALLATION INSTRUCTION
DIMENSION DRAWING
IES



Reflector Color
Points of Attention
• Product images are for reference only. Product color and texture may vary by device.
• Color and texture of product images may vary by device.
• Products may be temporarily out of stock even if “Sold Out” is not displayed. In the event of an out-of-stock situation, it may take up to 3-5 months for the product to be shipped. Please be aware of this in advance. If you are in a hurry or wish to specify a specific date and time, please inquire about stock availability in advance.
